Especificación
Modelo | AIN51105W | AIN51105S | AIN5165S | AIN51150S | AIN76105S |
Voltaje nominal | 51,2 V | 51,2 V | 51,2 V | 51,2 V | 76.8V |
Capacidad nominal | 105Ah | 105Ah | 65Ah | 150Ah | 105Ah |
Rated Energy | 5370Wh | 5370Wh | 3320Wh | 7680Wh | 5370Wh |
Maximum Charge Voltage | 58,4 V | 58,4 V | 58,4 V | 58,4 V | 87,6 V |
Corriente de carga máxima | 100A | 100A | 60A | 150A | 100A |
Corriente de descarga continua máxima | 150A | 150A | 130A | 200A | 200A |
Maximum Peak Discharge Current (30 seconds) | 300A | 300A | 250A | 300A | 300A |
Voltaje de corte de descarga | 43,2 V | 43,2 V | 43,2 V | 43,2 V | 43,2 V |
Driving Mileage | 65-80km | 65-80km | 40-60km | 90-120km | 100-130km |
Temperatura de carga | 0 ~ + 55 ℃ | 0 ~ + 55 ℃ | 0 ~ + 55 ℃ | 0 ~ + 55 ℃ | 0 ~ + 55 ℃ |
Temperatura de descarga | -20 ~ + 60 ℃ | -20 ~ + 60 ℃ | -20 ~ + 60 ℃ | -20 ~ + 60 ℃ | -20 ~ + 60 ℃ |
Cycle Life (25℃, 0.5C, 100% DOD) | > 6000 | > 6000 | > 6000 | > 6000 | > 6000 |
Terminals | M8 Nut | M8 Nut | M8 Nut | M8 Nut | M8 Nut |
Nivel de protección | IP67 | IP65 | IP65 | IP65 | IP65 |
Dimensions(mm) | 547*334*245 | 457*298*253 | 465*243*228 | 675*325*260 | 674*338*275 |
Peso | 48.3kg | 49kg | 32 kg | 71kg | 72.8kg |
Communication Protocol | CAN / RS485 | RS485 | RS485 | CAN / RS485 | CAN / RS485 |
Características clave
1, PET is able to bear 850kg, avoid bulging
2, CCS vehicle-grade craft,integrated wires

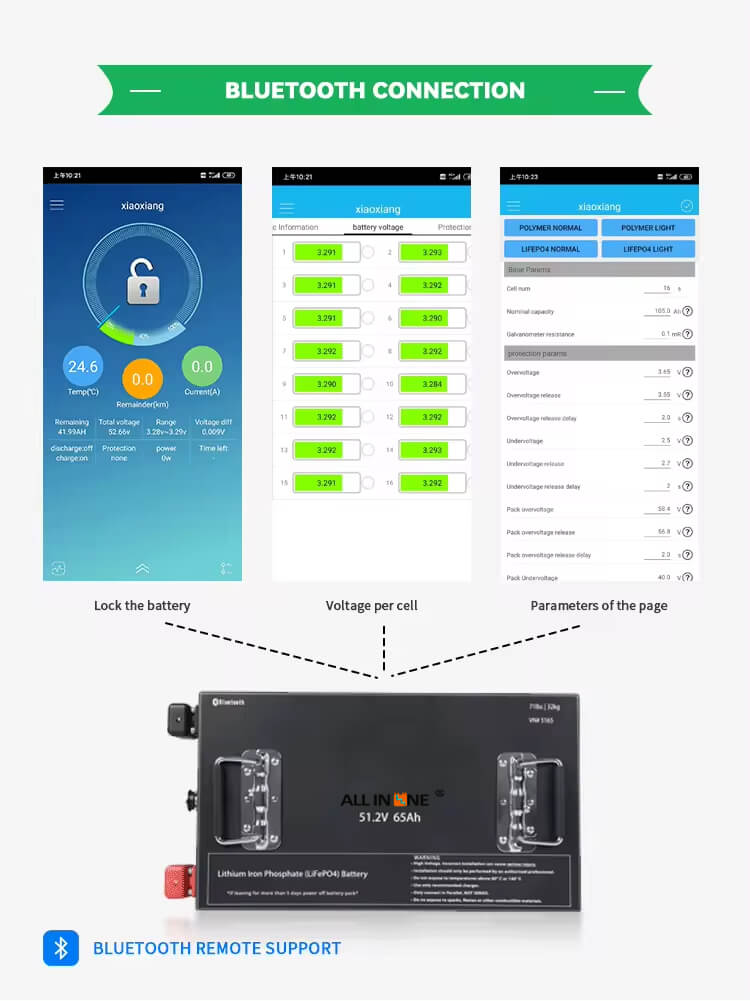

3, Support RS485/CAN/Bluetooth etc
4, 3-4mm metal plates at both side
5, Reserve 1mm width for potential bulging
6, Distributed sampling system to solve sampling impedance problem.
Nosotros prometemos
1.Todos los productos serán probado 100% antes del envío para garantizar que el producto no tenga problemas de calidad.
2.We guarantee that within 12 months from the date of receipt of the goods, we will not include man-made damage. If there is any quality problem, we will provide return service.
Solicitud
> Uninterruptible power system > Grid load shifters > Electric Golf Car > Electric vehicles
> Electric motorcycles> Electric forklifts > Electric boats, etc.> Wind-Solar energy system
> Solar street lights > Off-grid energy storage > Household energy storage
> Telecom backup system > Mobile base stations> Emergency backup energy sources
Nuestra fábrica
Empaque y envío
Preguntas más frecuentes
Q1:Can I have samples to test? And what is the lead time for sample orders?
A1:Yes, we can supply samples, the lead time for samples is 7-10 days. and buyer pays for sample cost and shipping cost.
P2: ¿Ofrecen servicio postventa?
A2: Yes, the warranty is 3 years, if any quality problems on our side in this period, we can send a new one as a replacement.
Q3 ¿Cuál es la ventaja de su empresa?
A3: We only supply high-level quality of battery and we guarantee on-time shipment, we also provide excellent after-sales service
Q4: ¿Acepta OEM / ODM?
A4: Yes, it is available.
Q5: What is your lead time for mass production?
A5: Hablando en general, alrededor de 25-30 días dependiendo de los diferentes artículos después de recibir el pago inicial y la confirmación de las muestras.
Q6:Are your battery real capacity?
A6: Todas nuestras celdas de batería con Grado A, 100% nuevas y con capacidad real.
P7: ¿Es usted una fábrica o una empresa comercial?
A7:ALL IN ONE Battery Technology Co Ltd is a professional rechargeable lithium-ion battery and LifePO4 battery manufacturer, welcome to visit.
P8: ¿Qué tipo de certificados tiene?
A8: Podemos proporcionar CE, ROHS, FCC, IEC62133, MSDS, UN38.3 si la cantidad de su pedido es grande.
