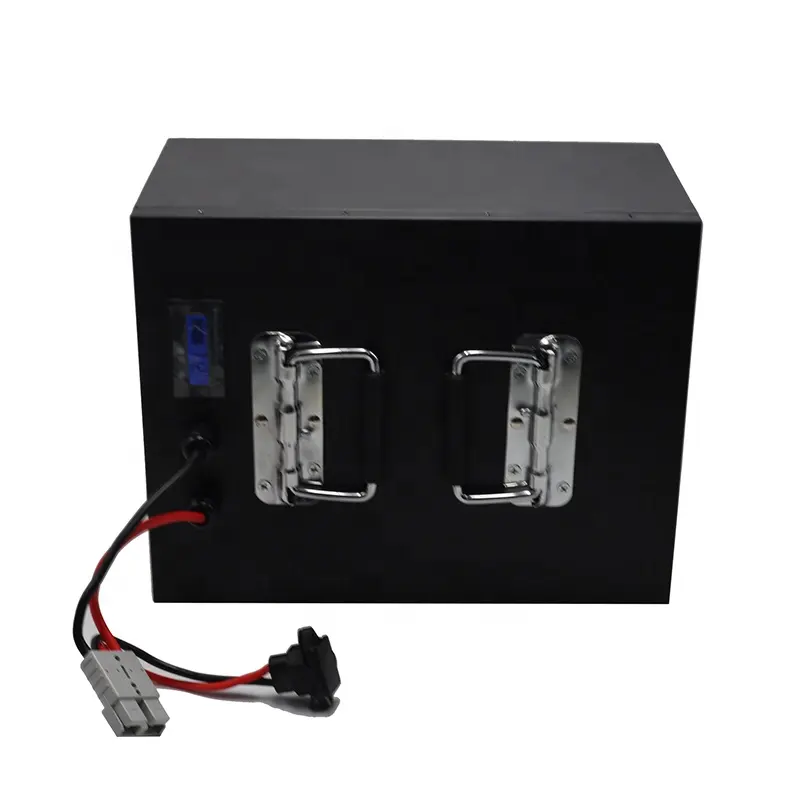

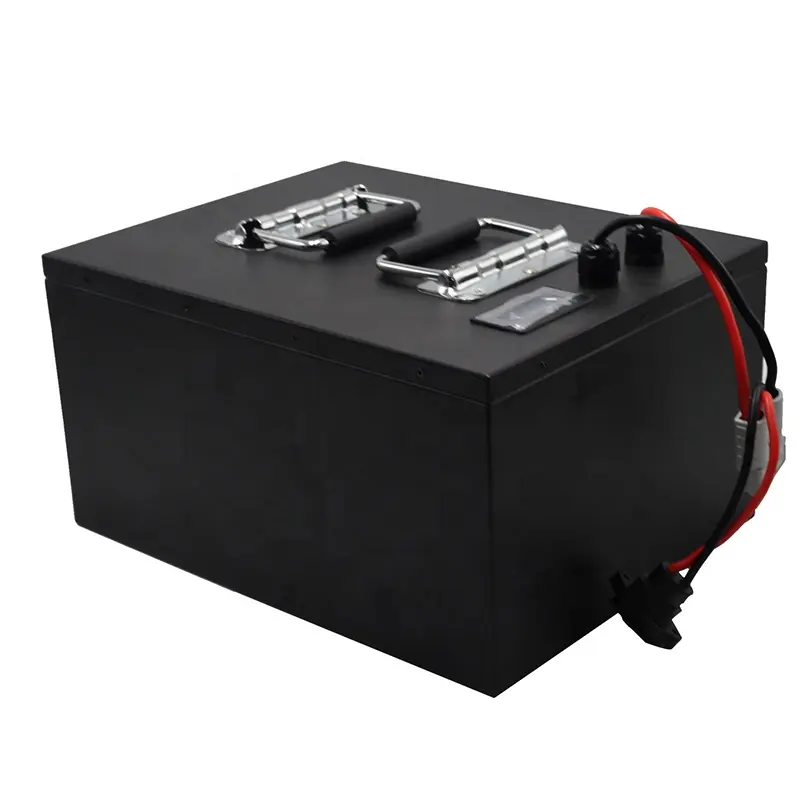

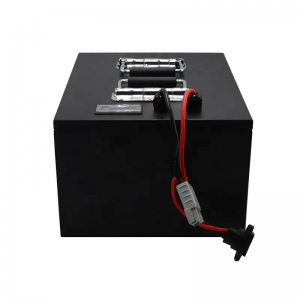

Paquete personalizado de iones de litio de batería de vehículo eléctrico LiFePO4 72v 60ah para coches EV

2023-06-06 02:13

Especificación

Nombre de la marca	TODO EN UNO
Modelo	AIN7260
Garantía	5 años
Voltaje nominal	76,8 V
Capacidad nominal	[email protected]/customize
Energía	4416Wh
Resistencia interna	≤50mΩ
Ciclo de vida	4000 Cycles @ 0.2C Charging/Discharging ,Until 80% Capacity
Autodescarga	≤3.5% por mes a 25 ℃
Voltaje de carga máx.	87.6 V
Modo de carga	At 0℃~45℃ temperature, charged to 87.6  V at a constant current of 0.2C, and then,changed continuously with constant voltage of 87.6 V until the current was not more than 0.02C
Corriente de carga	30A
Corriente de carga máx.	60A
Descarga de corriente	30A
Max. discharge Continuous Current	60A
Corriente de pulso máx.	120A(<3S）
Descarga de voltaje de corte	60V
Temperatura de carga	0 ℃ a 45 ℃ (32 ℉ a 113 ℉) a 60 ± 25% de humedad relativa
Temperatura de descarga	-20 ℃ a 60 ℃ (-4 ℉ a 140 ℉) a 60 ± 25% de humedad relativa
Temperatura de almacenamiento	0 ℃ a 45 ℃ (32 ℉ a 113 ℉) a 60 ± 25% de humedad relativa
Resistencia al polvo de agua	IP55
Celda y formato	LFP  60AH 24S1P/customize
Caja	Caja de metal
Dimensión (L * W * H * TH)	personalizar
Peso	50kg
Terminal	M6 or Anderson or another bolt screw
Peak discharge current BMS	60A
High temp port. Low temp port.	over charge port. over discharge port.
Método de carga	CC CV
Terminal Type	M6 or Anderson or another bolt screw/customize
Certificado	CE, RoHS ,MSDS and UN38.3 certification
applications	Golf Carts, Electric Forklifts,Slow Speed Car; AGV,Electric Motorcycle; Sightseeing car;RV ,Tricycle, electric vehicles, Electric Wheelchairs, Electric Power Systems, Uninterruptible Power Supplies, Solar Energy Storage Systems,BOATS

Recordatorio

1.Support customization, according to the specifications required by customers: voltage, capacity, power, working current, size,weight.

2. Factory wholesale price, our factory has a price advantage. Cells of the same level are the cheapest, and you can choose the corresponding cells to make a battery pack according to your requirements.

3.Before placing Order please contact customer service to communicate the required specifications to confirm the price.

Solicitud

Nuestra fábrica

Why to choose us?

* We have our own factory and company, which belong to an absolute integration of industry and trade.
* A large number of batteries are in stock.
* Have very good product resources.
* Good product quality and favorable price.
* The product is 100% original and brand new.
* 100% on time delivery. Fast delivery.(including battery pack <7 days).
* Long warranty 2-5 years.
* provide sample 2-7 days.
* Professional after-sales service.
* We have a complete industrial chain and professional engineers can make battery packs that satisfy you as quickly as
possible.
If you want to know more about the information, please free feel to contact me. Thanks!

Empaque y envío

Embalaje

1). Carton Size: customized or based on actual weight and volume, best quality.

2). 5-layers exporting carton or customized outer packaging for paper bags;

Envío

1). By Express (3-30working days),there are express shipping or economic shipping,suitable for small quantity.

2). By Train(25-28days),for EU Country,including customs clearance, all the import tax fees and UPS delivery to the door.

3). By Sea (15-30 days), it suitable for regular mass production.

We cooperate with excellent international freight forwarding companies to provide cheap and efficient logistics services. If you have any shipping issues, please feel free to contact me.



Preguntas más frecuentes

P: ¿Cómo debo pagar? ¿Qué formas de pago aceptan?
A: T/T, PayPal, Western Union.

P: ¿Es aceptable el pedido de muestra?
R: Sí, para la mayoría de las baterías, los pedidos de muestra para probar la calidad son razonables y aceptables.

P: ¿Está aprobada la calidad de su batería?
A: Yes, we guarantee that all cells are 100% original from Brand. And we will have full inspection of each cells and grouping them before assembling into battery packs. And all finished battery packs will be under a full inspection
before shipment.

P: ¿Cómo puedes demostrar que tus células son 100% originales?
R: Podemos mostrarle la lista de paquetes original y otros documentos relacionados.

Q: what is your lead time if I placed an order?
A: For all products in stock, our lead time is within 2 working days after payment received. For these that we don't stock for the moment such as customized battery packs, the lead time is around 7-10 days.

P: ¿Cuál es su garantía?
A: These situations not provide return nor refund:
1.After the assembly or assembly process happen any problem, such as the protection board connected to the wrong wire burned lead to battery damage, charger failure, the assembly error or unbalanced assembly, etc.
2. Por daños causados, como abultamiento / soldadura de la batería, paquete de baterías sin protección BMS causado por la carga.
