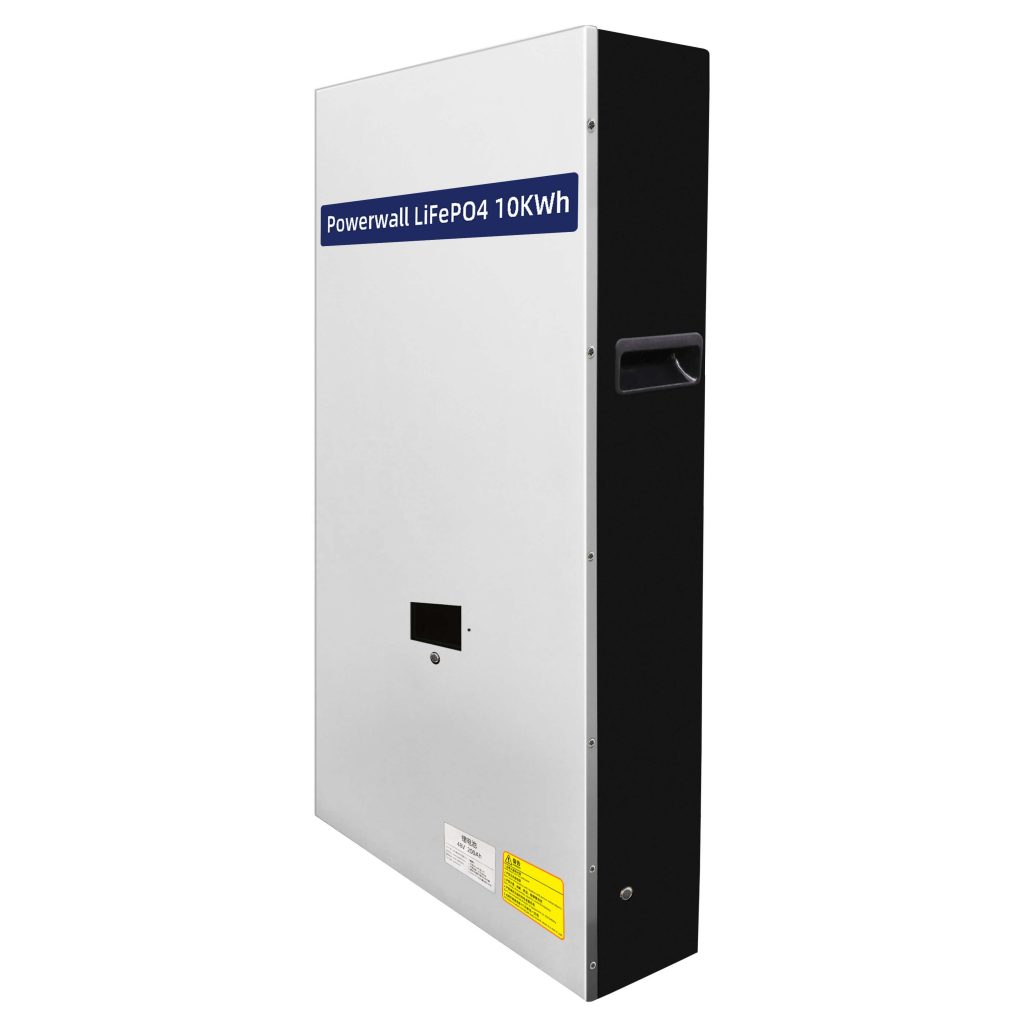

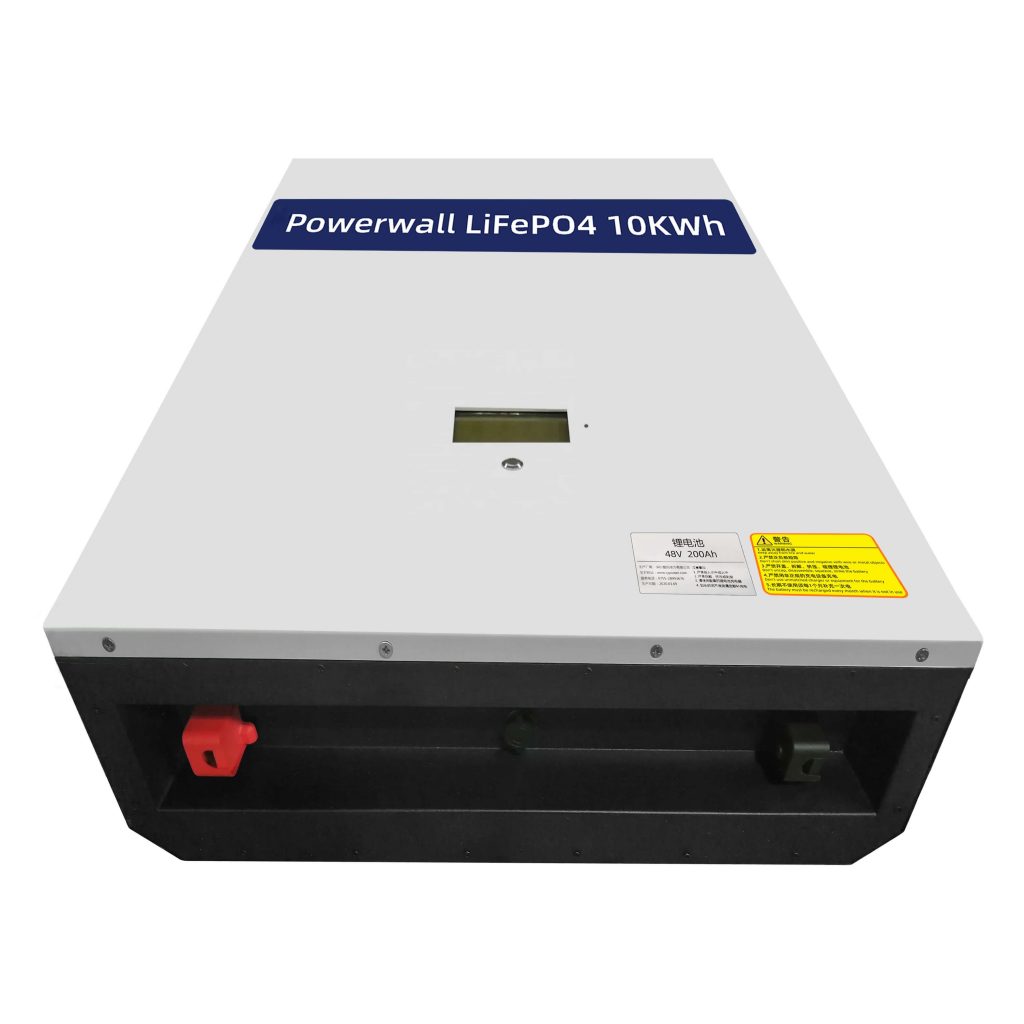

ALL IN ONE 48V 51.2V 100Ah Solar System Lithium Lifepo4 Battery Household Power wall 48V 5Kw 10Kw

2021-03-05 10:13

Especificación:

Technical Parameters
NoArticuloParameters
1.PerformanceTipoLiFePO4 Battery (Cell 3.2V 100Ah
Voltaje nominal51,2 V
Capacidad nominal100Ah(0.2C/25°C)
Operating Voltage Range42V~57V (Typical: 51.2V)
Voltaje de carga57V
Voltaje de corte de descarga42V
Charging Current (Max)60A
Discharging Current (Max)100A
DimensionesLongitud520mm
Anchura460mm
Altura200mm
PesoAbout 52.5KG
2.FunctionInstallation MethodWall-mounted
ComunicaciónRS485
Terminal StudM8 Bolt


Alarm&Protection

Over Voltage, Under Voltage, Short Circuit, Over Current, Over Temperature, Low Temperature Protection, etc.
3.Working ConditionCooling ModeAutomatic Cold And Hot
Altitude≤4000m
Humedad15%~85%
Temperatura de funcionamientoCargar0°C~50°C
Descarga-10 ° C ~ 60 ° C
Recommended Operating TemperatureCargar15°C~40°C
Descarga15°C~40°C
Almacenamiento0 ° C ~ 35 ° C

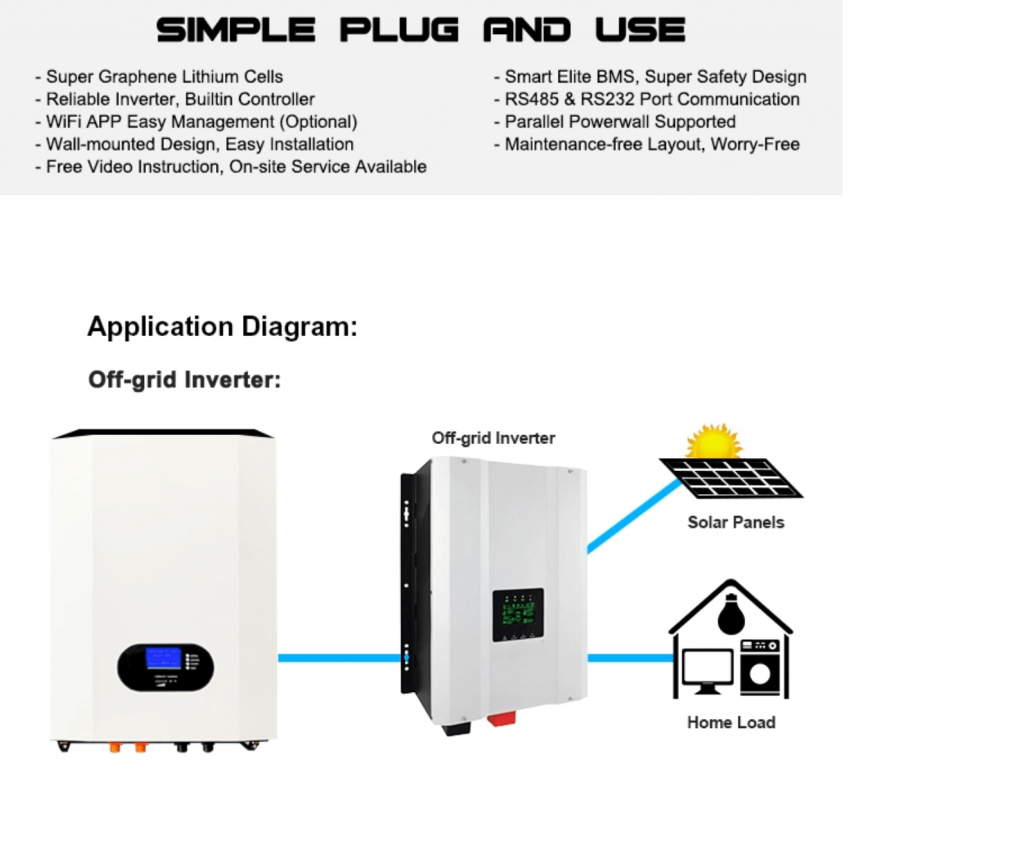

Application Field: Telecommunication, PV Energy Storage, Household Energy Storage etc.









Production Describation

1. 51.2V 100Ah LFP100Ah-16S1P LiFePO4 Battery Packs

2. Real Capacity: 100Ah

3. Fábrica profesional: OEM / ODM son bienvenidos.

4. Se aprueban UL / CE / ROSH / MSDS / UN38.3.

5. Alta densidad energética, ciclo de vida prolongado.

NO.ItermEspecificación
1Capacidad100Ah
2voltaje51,2 V
3Max. Voltaje de carga57.0V
4Voltaje de corte de descarga42V
5Corriente de carga estándar60A
6Max. Corriente de carga 100A
7Corriente de descarga estándar 60A
8Max. Corriente de descarga continua100A
9Descarga de pulso Descarga a 10's 200A 1s
10Resistencia interna
11Ciclo de vida6000 Times
12Dimensión435*875*190mm
13Peso102 KGs
14temperatura de operacion-20 ° C-60 ° C

Nuestros servicios

1.Proveedor experimentado de baterías y paquetes LiFePO4 / de iones de litio.

2. Equipo profesional técnico, de producción y de servicio para su servicio.

3. Alibaba golden supplier, factory recognized by ISO.

4. 7 days / 24 hours service for you, all questions will be dealed within 24hours.

5. Satable Quality--Come from superior material supplier & perfect quality control system.

6.Lower Cost--Not the cheapest but the lowest at the same quality.

7.Good Service--Satified service before and after sale.

8. Delivery Time-- 5-10 Days.

9. Warranty Period--2 Years.

Nuestra fábrica

Empaque y envío
1. UPS / DHL / EMS / HK EMS / FEDEX / HK post / TNT and so on express(door to door)
2. For Air Shipment, Please choose your favorite, shipping method according your detail requirement
3. The shipping discount is different in different seasons and depend different weight, we will choose the cheapest and safest way according your detail quantitie
4. Normally, it will take around 3-7days from China to destination country. Please note that some remote place will need 1-3 days more.

Preguntas más frecuentes

(1). How do we place an order?
Please kindly send us an email specifying the item, quantity, payment or other specification to place an order.

(2). Your battery can meet CE RoHS requirements?
Our battery are with the certificate of CE/RoHS.

(3). How would the goods be shipped?
We ship via UPS,DHL ,FEDEX and sea transportation normally.

(4). Can you print my picture or logo on the battery cover?
Yes, OEM is available,we can print your picture or logo on the battery case, and you can offer your logo.

(5). What kind of guarantee you give?
Our battery the warranty time is 2 years.

Nota: All products do not support retail, please contact us for product prices!
