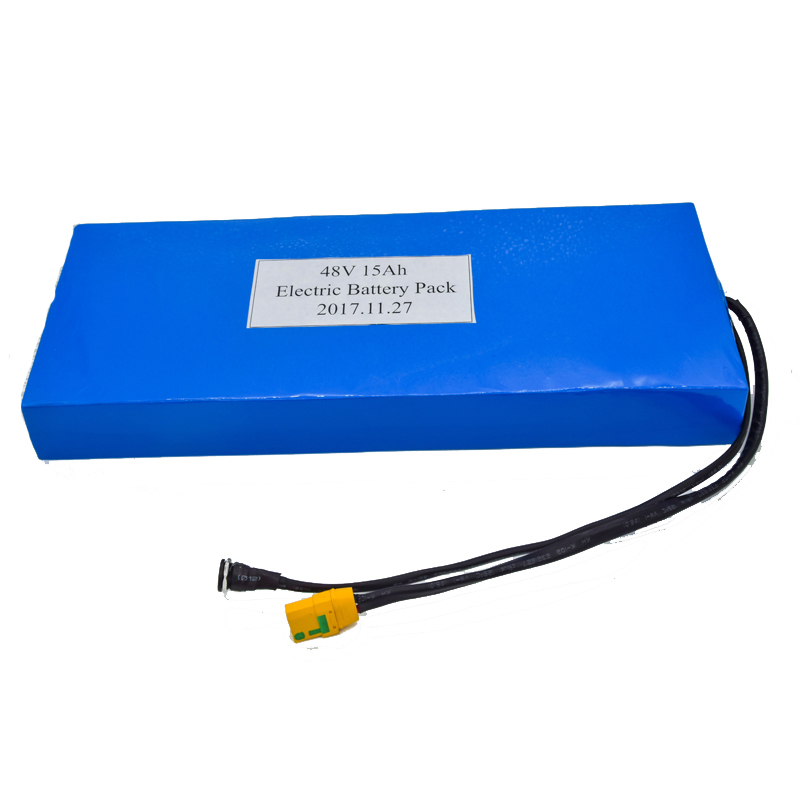

Batería de litio al por mayor de 15Ah 48V para scooter eléctrico

2020-10-08 03:12

Especificación

ProductALL IN ONE BATTERY AIN48-15000RemarkRated CapacityTypical15Ah

standard discharge(0.2C)

after standard charge

Minimum15Ah

Alternating

Internal Resistance

≤ 70 mΩ
Nominal Voltage48Vmean operation voltageVoltage at end of Discharge32.5Vdischarge cut-off voltageCharging at end of Voltage54.6V
Cargo estándar

Constant Current 0.2C Constant

Voltage 54.6V 0.02C cut-off

charge time:Approx 6.0hStandard DischargeConstant Current 0.2C end Voltage 3.0V
Fast Charge

Constant Current 1C Constant

Voltage 54.6V 0.02C5A cut-off

charge time:Approx 5hFast DischargeConstant Current 1C end Voltage 33V
Característica del ciclo

400times(100%DOD)

500 times(80%DOD)

800 times(50%DOD)

the residual capacity is no less

than 80% of rated capacity at 1C rate.

Maximum Continuous

Discharge Current

2Cpulse discharge current: 3 COperation Temperature Range

Carga: 0 ~ 55 ℃

Descarga: -20 ~ 60 ℃

60±25%R.H. bare batteryStorage Temperature Range

Menos de 1 año: -20 ~ 25 ℃

Less than 3 months:-20~45℃

60±25%R.H. at the shipment

  Solicitud

Nuestra fábrica



Ventajas

Experiencia
ALL IN ONE is a leading battery manufacturer and exporter, over 10 years' experience of battery manufacture.

Profesional
En los últimos 10 años, hemos trabajado con más de doscientas empresas en el mundo. Hemos reconocido por la mayoría de compañeros y clientes.

Calidad
We adhere to every detection step strictl including appearance/ short circuit quality check,Electric check,Liability test etc.In order to ensure the quality of product you receive,AIN battery passed CE,MSDS,IEC,RoHS certificate,ISO9001:2008 and ISO14001:2004 standards.

Servicio postventa
We provide one year warranty. Our well-trained engineers and staffs will respond to your nquiries within 12 hours and help you solve any products problem patiently and sincerely.

OEM y ODM
Any detail (size,material etc)can be customized or changed according to your unique requirements.About 20 R & D staff to provide the ability to meet different customer requirements of a new generation of battery program committed to product development.

Batería de litio relacionada

Nuestros servicios

1. We supply 100% Genuine New Battery;

2. Small quantity orders acceptable;

3. We will suggest the most suitable shipping way for you and inform you the cost advance;

4. We have larger stocks and dependable carries this support us can make a very prompt shipping;

5. We accept pay via T/T, Paypal, Western Union;

6. Price could be negotiated for more and large quantity;

7. Your enquiry will be quickly responded, we will choose the most suitable products and quote the most competitive price for you.

Empaque y envío

Nota: Somos un fabricante de baterías. Todos los productos no son compatibles con la venta minorista, solo hacemos negocios B2B. ¡Contáctanos para conocer los precios de los productos!
