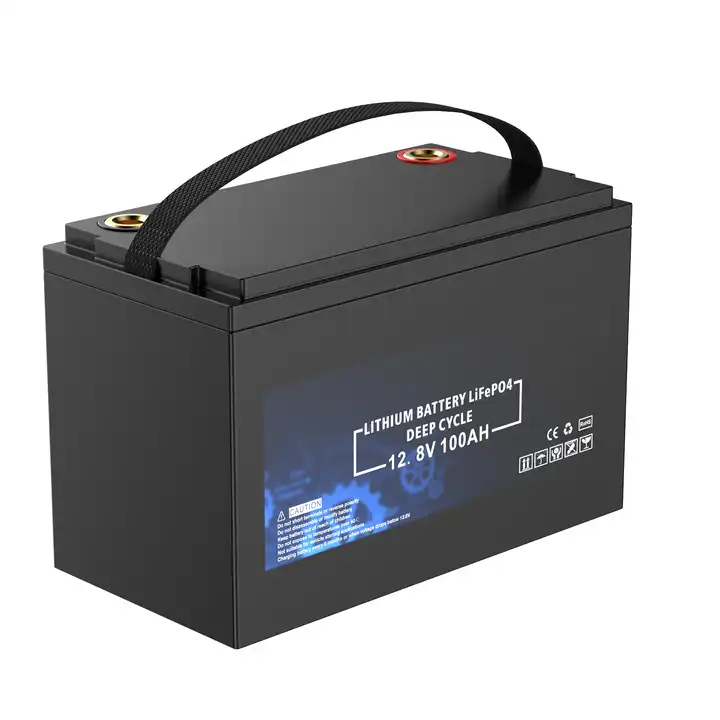

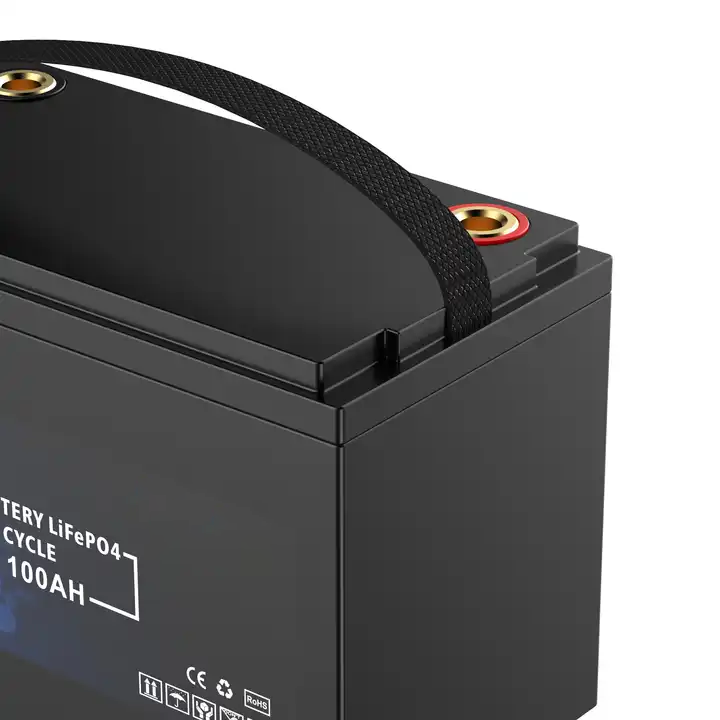

Batería LiFePO4 12V 100Ah de larga duración incorporada BMS

2023-11-07 05:54

Especificación

12V 100Ah LifePO4 Battery Pack With 100A BMS
ElectricVoltaje nominal12,8 V
 Capacidad nominal100Ah
 Stored energy1280wh
 Ciclo de vida6000 times (Cycle @RT, 1C rate,85%D\OD)
 Configuración4S1P
 Self discharge< 3% per month


Estándar
Cargar

Método de cargaCC/CV : Constant Current / Constant Voltage
 End-of charge voltage14,6 V
 Corriente de carga continua50A
 Maximum charge current70A


Estándar
Descarga

Corriente de descarga continua100A
 Maximum discharge current (< 3s)150A (3S)
 End-of discharge voltage9.2V


Environment

Charge temperature range0°C to +50°C
 Discharge temperature range-20 ℃ ~ 55 ℃
 Temperatura de almacenamiento0°C- +50°C @60±25% relative humidity
MecánicoCell assembly3.2v 100ah prismatic LifePO4
 Casing materialABS Case
 Dimensionespersonalizar
 Peso12 kg
 TerminalM8






Battery Protection Management System

Función BMS

Built-in 100A BMS

Automatic Functions
Low Voltage Disconnect
Short Circuit Protection
Over Voltage Protection
Over Current Protection
Protección contra sobrecarga
Over Discharge Protection
Over Temperature Protection
Internal Cell Balancing

Garantía5 Years warranty, In use process, if the product quality problems will be free replacement parts.Our company will replace any defective item free of charge.
SolicitudSolar Energy,Solar Street Light,Wind Energy,Household Energy,RV campers, Marine,Trolling Motor, Replace lead-acid batteries, LED light, Backup battery, Power battery.
OEM / ODMSticker/ Logo/ package / connector
CertificaciónCE, MSDS and UN38.3, etc

AIN12-100 LifePO4 battery pack use the grade A  LifePO4 battery, whose life span is 10 times longer than the traditional lead acid batteries, and it is lighter. For the capacity, Lifepo4 batteries can provide twice the battery capacity in the same amount of space. With operating ranges from -40 to 158 degrees Fahrenheit, LifePO4 handle far wider variations in temperature.

Solicitud

AIN-12 series battery pack can provide power for various equipment, such as the golf carts, RV, electric boat, street light and etc. With high capacity, which can meet all kinds of demands.

♦ Sistema de energía solar-eólica
♦ Power tools: electric drills, toys Energy Storage
♦ City Grid (On/Off) Back-up solar System and UPS
♦ Seguridad y electrónica, POS móvil, Minería Lihgt / Antorcha / Luz LED / Luz de emergencia
♦ Base Telcom, sistema CATV, centro de servidores informáticos, instrumentos médicos, equipos militares, otras aplicaciones
♦ Commercial Bus and Transit: E-car, E-bus, Golf troller/car, E-bike, Scooter, RV, AGV, Marine, Tourist car, Caravan, Wheel
chair, E-truck, E-sweeper, Floor cleaner, E-walker etc.



Nuestra compañía

Empaque y envío

El tiempo de entrega
Normally delivery within 7-20days, but can arrange in advance if order confirm or produce faster according to quantity or other reason.
Pago
1. We accept T/T , PAYPAL , Western Union, Cash and so on

2. FOB , EXW and CIF all are available
3. Samples can accept Paypal.
Shipping way
DHL, UPS, FedEx, Special Line, Sea shipping, Customer own forwarder

Preguntas más frecuentes

Q1: Can I get free samples?

A1: Generally, we do not provide free samples, but we can refund the sample cost when buyers place bulk orders.

Q2: If we place an order, how long is the delivery time?

A2: It depends on the order quantity. Usually, for small orders, we can deliver within 3-5 working days. For bulk orders, let us confirm when we place the official order.

Q3: What are your payment and delivery terms?

A3: Payment terms: via T/T, 30% deposit and balance all before shipment. For small amounts, we also accept payment via PayPal.

Q4: Which company will be used for shipment, DHL, UPS or others?

A4: Usually, we ship batteries via DHL, UPS and FedEx.

Q5: What kind of packages do you ship? Can I have a customized package?

A5:We have factory current standard package, custom printed logo should meet the buyer's requirement, extra cost will be borne by the buyer, for more details, please contact us.

Q6: Your factory or trading company?

A6: We are a professional battery manufacturer with our own factory and brand. We provide various OEM / ODM services to our customers all over the world.

Q7: Where is your company's main market?

A7: Our company focuses on North America, Europe, Korea and Japan market for high quality batteries.

Q8: What are your advantages compared to other suppliers?

A8 a) High quality batteries: Our batteries have sufficient capacity and low RI. Before shipping, we will check the products and make sure the quality is approved by customers.

A8 b) Better service: We always provide what our customers need. Promptly respond to customer's questions. We provide the best project solution for our customers. We ship on time.

P9: ¿Podemos visitar su fábrica antes de realizar un pedido?

A9: Of course no problem, we are always welcome to visit our factory.

Nota: Somos un fabricante de baterías. Todos los productos no son compatibles con la venta minorista, solo hacemos negocios B2B. ¡Contáctanos para conocer los precios de los productos!
